360KW Thermal Oil Heater for Paper Making

FOB Reference Price:Get Latest Price
$8,000.00 - $20,000.00 / Sets | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Pressure:
Low Pressure
Style:
Vertical
Fuel:
Oil based,Coal Based, etc
Place of Origin:
Shandong, China
Brand Name:
LONG TENG
Model Number:
WDR Series
Dimension(L*W*H):
As Model
Weight:
As Model
Certification:
ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Media:
Organic Heat Transfer Material
Heat Carrier:
Conduction Oil/Thermal Oil
Heat Efficiency:
>90%
Highest Operation Temperature:
300
Supply Ability
Supply Ability:
200 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard wooden cases
Port
Qingdao Port
Lead Time :
Shipped in 7 days after payment
Product Description

1. Features:



(1) It  runs at a lower pressure and get a higher operating temperature.

(2) It can get the stable heating and precise temperature.

(3) Thermal Oil Heater has complete operational control and security monitoring devices.

(4) Thermal oil furnace helps to save electricity, oil and water, and can recover investment in 3 to 6 months.



2. Brief Introduction:

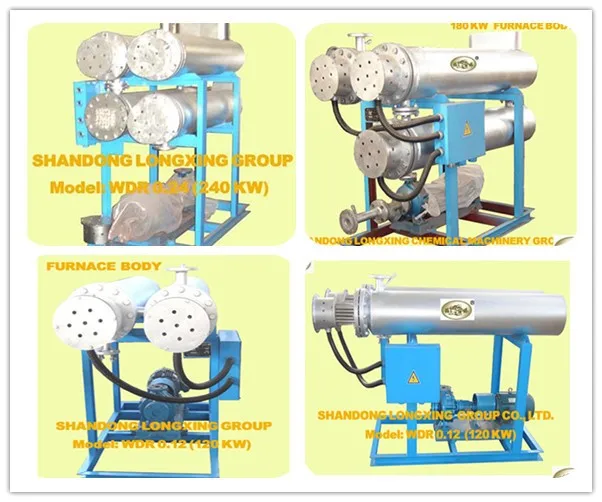

The Thermal Oil Heater, with stable performance and reliable quality, is examined and approved by the State Technical Supervision Bureau, and is tested by Yantai City.
 It is an efficient heating equipment, which uses electricity as heat source and heat transfer oil as heat carrier, passing thermal energy to the heat users through the forced circulation of the hot oil pump, and returns to the Heater for reheating and recirculation.


3.Technical Parameters:



Type Specification

WDR 0.036

WDR 0.06

WDR 0.12

WDR 0.18

WDR 0.24

WDR 0.30

WDR 0.36

Heating Power (kw)

36

60

120

180

240

300

360

Heat Output (×10³Kj/h)

129

216

432

648

864

1080

1296

Highest Operation Temperature

300

Temperature Control Accuracy

±5

Thermal Efficiency (%)

>90

Design Pressure (Mpa)

0.7

Oil Cycle (m³ / h)

10

18

18

18

30

30

45

Motor Power (Kw)

2.2

5.5

5.5

5.5

7.5

7.5

11

Connecting Pipe (DN) (mm)

Output

32

50

50

50

65

65

80

Circuit

32

50

50

50

65

65

80

Dimensions(mm)

1785× 560× 1420

2000× 550× 1440

2000× 800 ×1440

200× 800× 1760

2000× 900× 1910

2000× 940× 2145

2000× 940× 2328

Weight(Kg)

375

495

662

840

1018

1350

1705





Company Information

Shandong Longxing Chemical Machinery Group Co., Ltd is not only the professional base for the chemical machinery, but also one of the fixed companies for China National Chemical Equipment Corporation.Our group has the Design License of Special Equipemnt in Grade D1 &D2, the Manufacture License of Special Equipment in Grade A1 &A2.We also have the Maufacturer License of Special Equipment in Heat Transfer Oil Furance, ISO Quality System Certification and the CE Certification.



Packaging & Shipping

We could package the product according to the customer's demand.

Packaging Detail:wooden carton(can be customized according to user's requests and specifications)
Delivery Detail:With 30 days on receiving deposite payment



FAQ

² Installation and after-sale Service

We provide complete installation &operation manual for all machines supplied by us.

  • Calling our technician to get advice
  • Sending email to our technician
  • Live chat with our technician on skype,trade manager,MSN,whats app,Wechat
  • Inviting our technician to your factory

² Warranty

All the machines made by QUANTA MACHINERY are warranted for one year .

-- By T/T.(40% by T/T for an order, the balance to be paid before delivery.
